How to add Print Template in Road Estimator?
Create the print template for required page size based on the cross section.

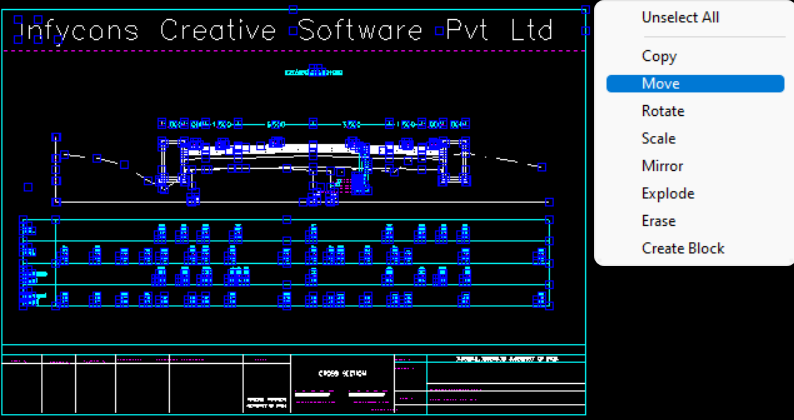

Using Move command, move the template with base point as datum reference point.

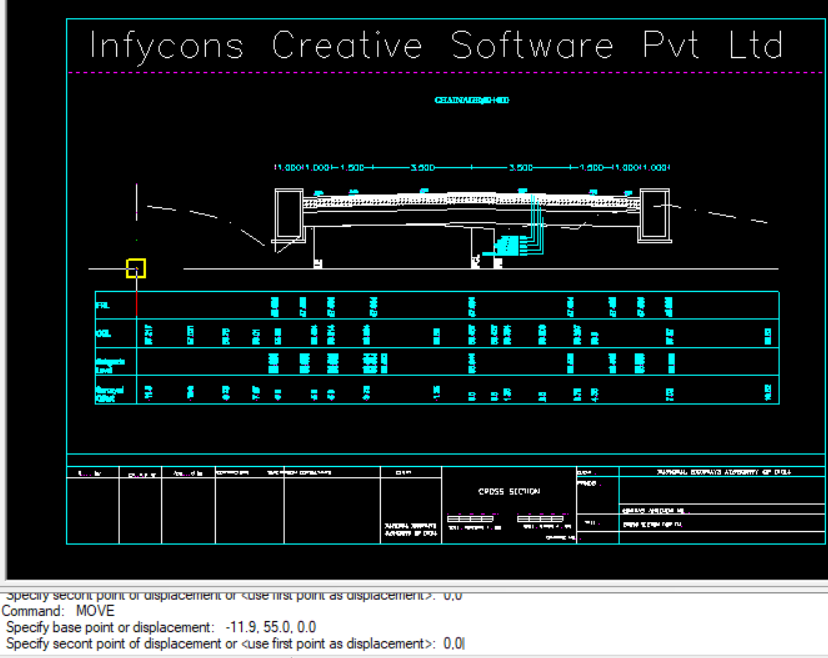

And second point of displacement as 0,0.
Template can be viewed using Zoom to Extents. If the cross section is present with the template, it can be deleted to save only the print template.

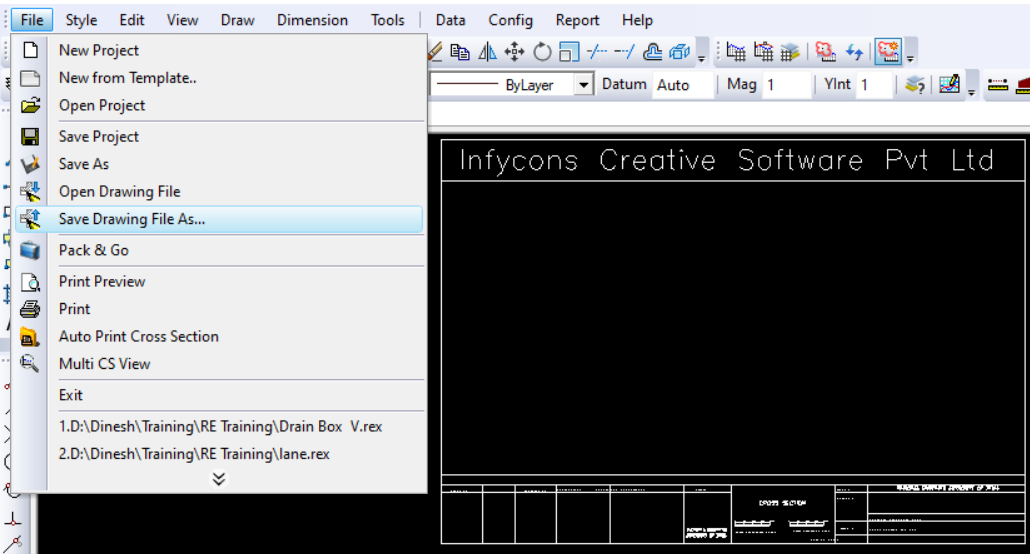

Go to file save drawing file as

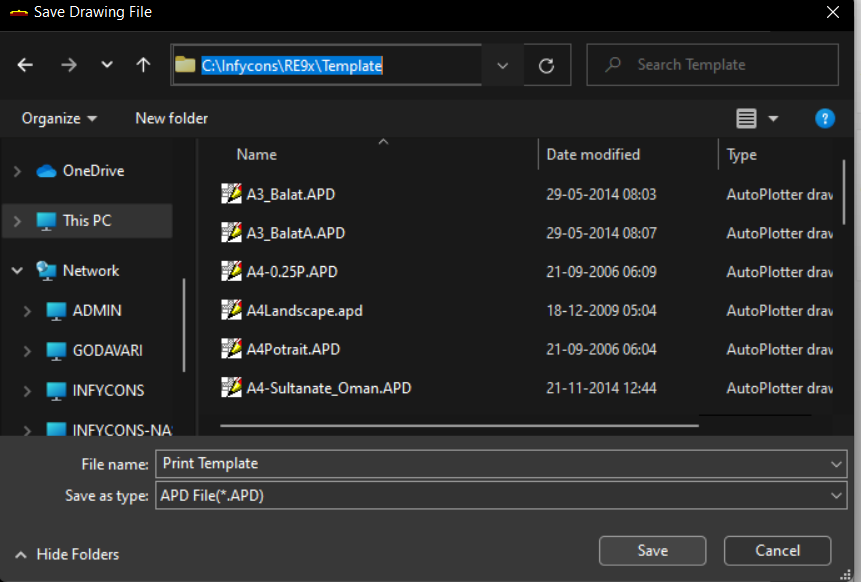

Save the template in APD file(*.APD) format in C:\Infycons\RE9x\Template folder
And save the template. This is how the template can be created and saved to the route folder.
Now to use this template for all the cross sections, Click on Add Print Template menu item under Config menu or use AT command and select the saved template from the list.
Enter the scale as 1 and process the sections.

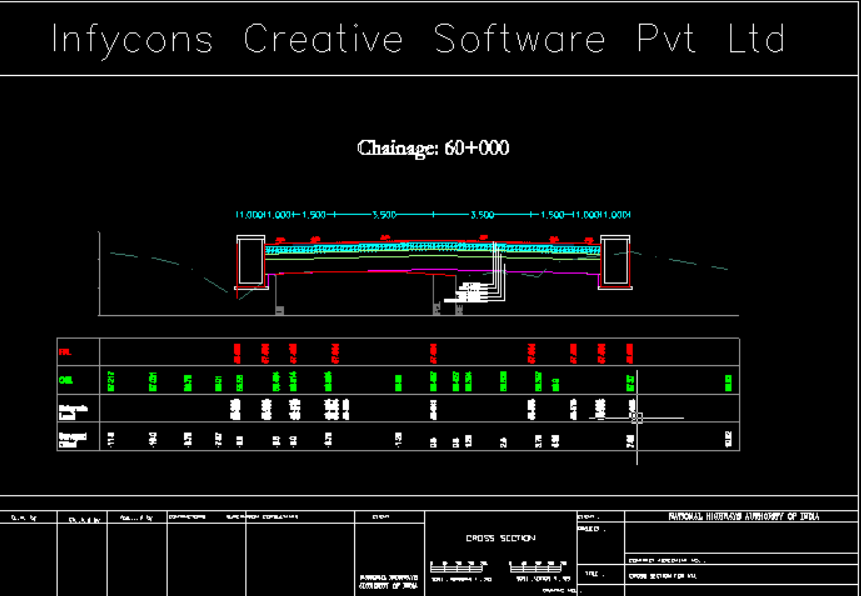

The print template will appear in all the cross sections.
