How to attach print template when we are using Multi CS View option to print the cross sections in Road Estimator?

To attach the print template in Multi CS view, follow the steps mentioned below:

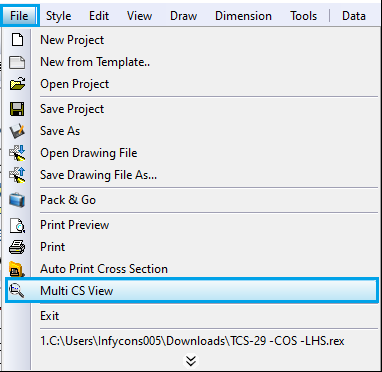

1. Go to File menu and select Multi CS View option

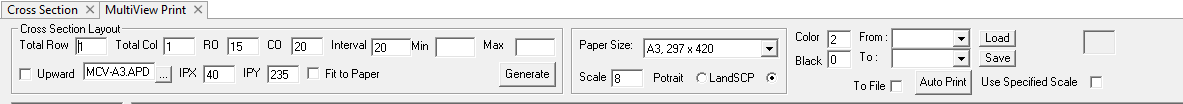

1. Now fill in the details as per print requirement




Total Row: Enter number of cross section rows required in single sheet.

Total Column: Enter number of cross section columns required in single sheet.

RO: Enter Row offset between cross sections.

CO: Enter column offset between cross sections.

Interval: Enter chainage interval.

Min: Enter start cross section chainage.

Max: Enter end cross section chainage or N4/N5 (N4 - total 4 number of cross sections from the start chainage)

IPX & IPY: Coordinate values for cross section insertion

Page Size: Select page size A3/A4 etc.

Scale: Enter the scale as per your requirement.

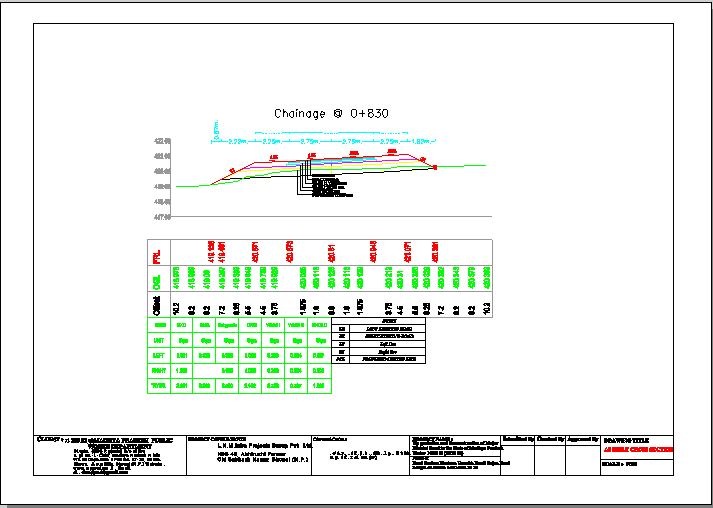

 From this button you can select the template to attach.

Note: Before attaching the template, change the template scale as per the cross section.

Example:  If you are using A3 template (297x420) with scale 8, you will have to convert 297x420 size to 37.125x52.5 based on the scale

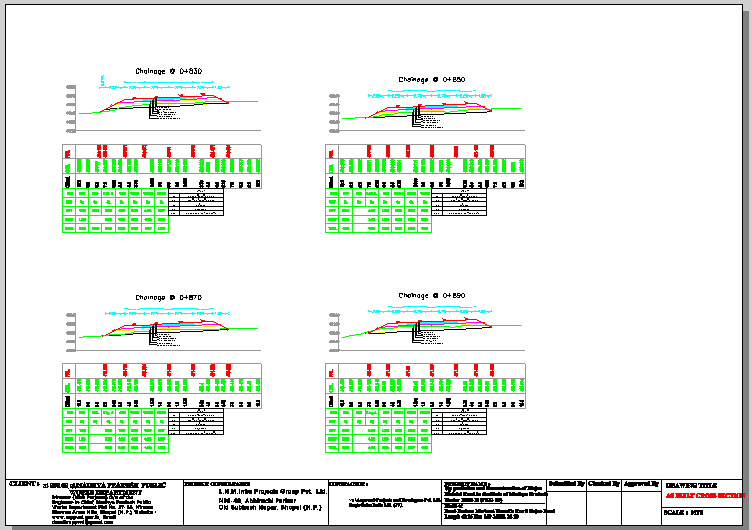

After this, click on Auto Print to print the cross sections.
