When I'm using the add print cross section option to export the cross section from Road Estimator to .dwg format only few chainages are exporting, why?

That's because of the Road Estimator update to not process all the cross sections together to save time. If you want to print or export all cross sections follow the steps mentioned below:

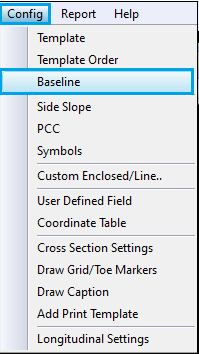

1. Go to Config menu. Select Baseline option

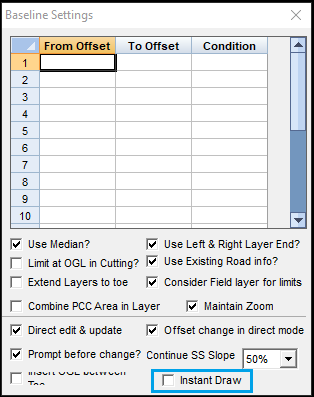

     ii. Uncheck the "Instant Draw" option and process the cross sections.



​

      iii. Now you can try to print the cross sections, it'll prints all the cross sections as per your requirement.
