How to know the Subgrade layer length or any other layer length in Road Estimator?

To determine the length of the subgrade layer or any other design layer in Road Estimator, follow these steps:

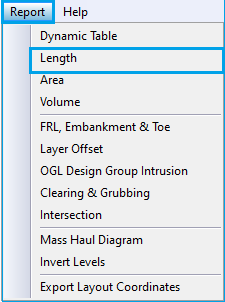

Step: 1 Go to the Report menu in Road Estimator and select the "Length" option.

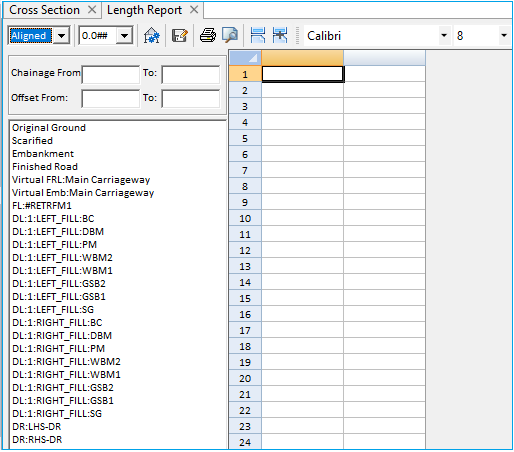

Step: 2 The Length Report window will open. Select the desired layer and specify other properties such as length aligned, precision, chainage, and offset from-to.

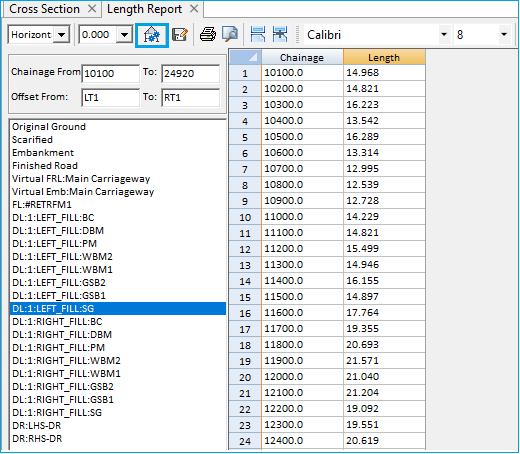

Step:3 After selecting the layer details, click on the "Generate" button. This will generate a Length report for each chainage, providing the length of the selected layer.

By following these steps, you can obtain the length of the subgrade layer or any other design layer in Road Estimator.
