Can I Import OGL data into Road Estimator saved in horizontal format?
Yes, it is possible to import the horizontal OGL data in Road Estimator.

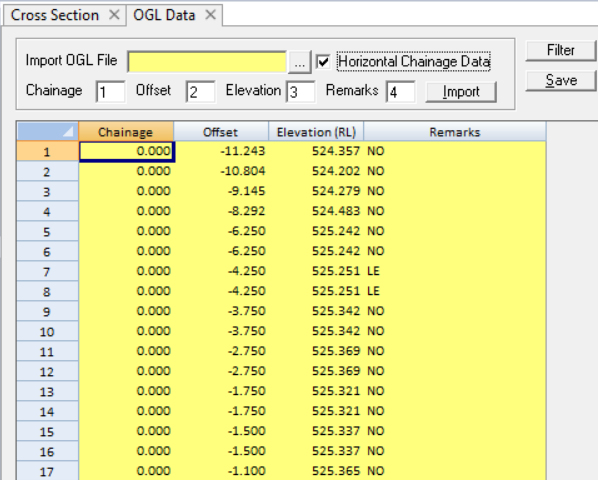

Data/ OGL data and select Horizontal Chainage Data
Then click on Import button, the data will get Imported.

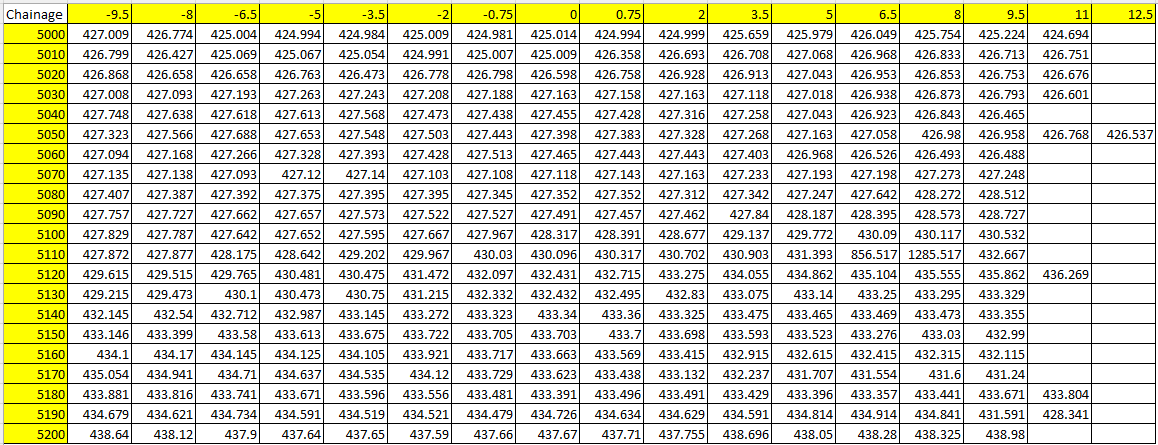

Format of data in .csv file should be:
Related Articles
How can we import Civil 3D or MX Road Horizontal report into AutoRoads?
Please follow the steps to load the Civil 3D horizontal report: Select the Horizontal Alignment under Design menu. Click on the Load Alignment data from File button. Select the file format and open it to load. It supports the other file types ...How to generate as built cross sections using survey data in Road Estimator?
We can generate as-built drawings using Field layer option which is available in DATA menu, Step 1 In Field area definition window, click on Add button. Then define field area details such as Layer Name, Color and import data and save it. Select ...How to generate OGL where any structure is present in the cross section using Road Estimator?
To add structure details in the cross-section, follow these steps: Step:1 Type "IBR" in the command bar and press Enter. A window will open, as shown in Figure 1. Figure 1 Step:2 Enter your structure details in the opened window and save the Bridge ...How to generate data (X, Y, Z) from a CAD drawing file in AutoPlotter?
Import the CAD file (.dwg / .dxf) by choosing the Open Drawing option under DATA menu. Then generate the CAD data to X,Y,Z format data by choosing Convert Drawing to data under DATA menu. All the drawing entities present in the drawing will be ...When I'm using the add print cross section option to export the cross section from Road Estimator to .dwg format only few chainages are exporting, why?
That's because of the Road Estimator update to not process all the cross sections together to save time. If you want to print or export all cross sections follow the steps mentioned below: Go to Config menu. Select Baseline option ii. Uncheck the ...
