How to provide slope in RE Wall in Road Estimator?
To provide RE Wall slope in the retaining wall definition:

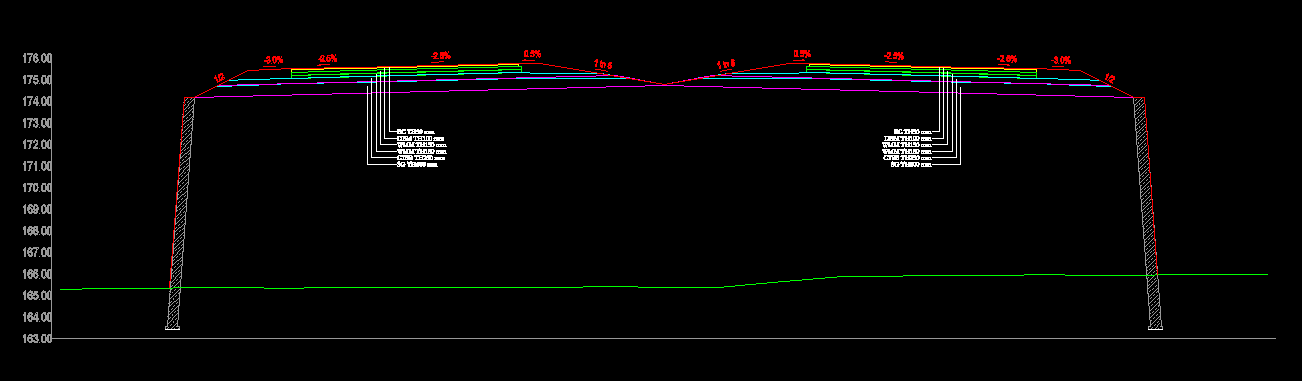

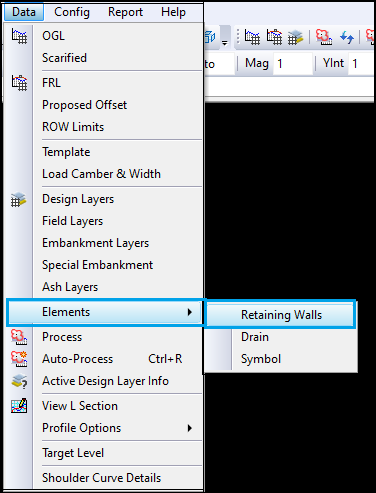

- Click on the Retaining Walls under the Data -> Elements option.

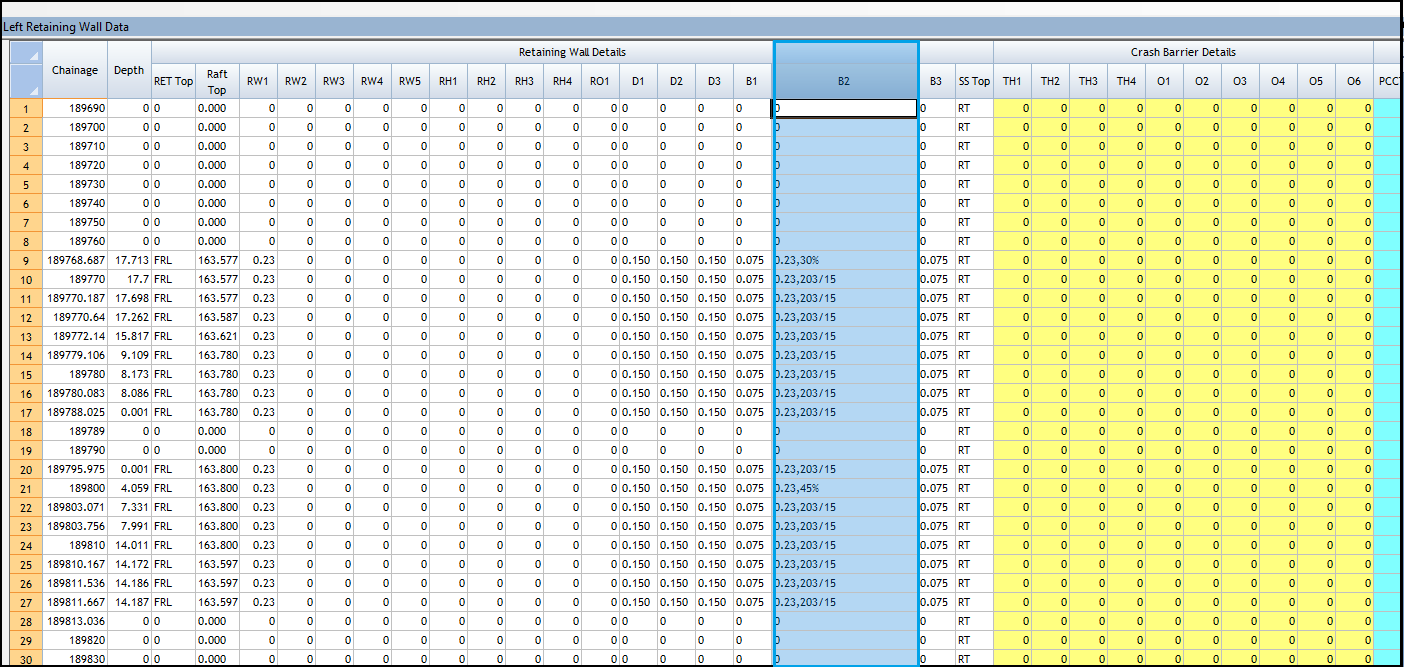

- In B2 column of the Retaining Wall Details, you can enter the slope value along with bottom width of the retaining wall
- Slope value can be in degree / percentage format
- e.g. ( 0.5,89) means 0.5 is the bottom width of the wall and 89 is the wall slope in degree format.
