When I select a boundary in AutoPlotter, it is not selecting. How can I select it?

When I select a boundary in AutoPlotter, it is not selecting. How can I select it?

In AutoPlotter, selecting closed boundary is often used while creating grid points or calculating volume of an area. If the boundary is not getting selected:

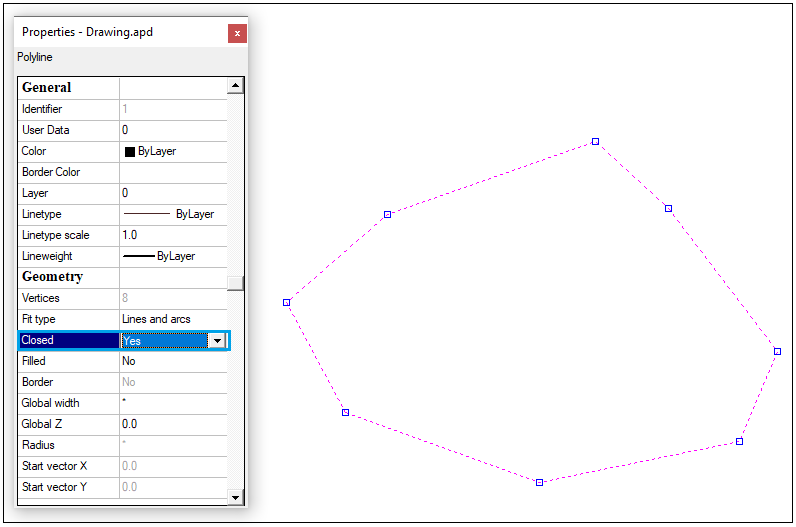

I. Check the properties of that boundary weather it is closed or not. This can be done by selecting the entity and pressing F4 button. This procedure displays the property of the selected entity.
II. If it is not closed, change the property from No to Yes. Or you can re-draw a closed boundary.
