How to export the drawings to .DWG /.DXF format in AutoPlotter?

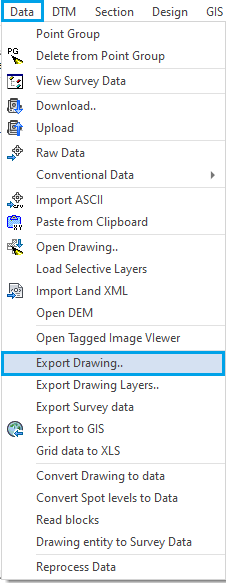

To export the drawings to .dwg / .dxf format, select Export Drawing option under Data menu

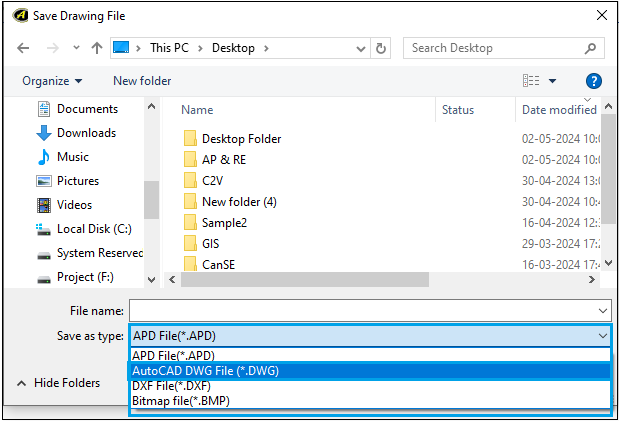

Select the required file type in Save as type and save the file.
