In AutoPlotter, how to export contour lines to .dwg format?

Follow the procedure as mentioned below to export the contour drawing:

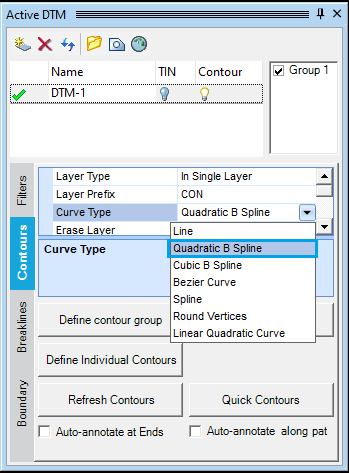

First define the contours as per your requirement using any of the methods. While defining the contours, select line type as Quadratic B spline or Line and generate the contours.



Using Export drawing option und Data menu, the contour drawing can be exported to .dwg or .dxf format.
