Design Layers are defined in Road Estimator, but not showing in cross section, What should I do?

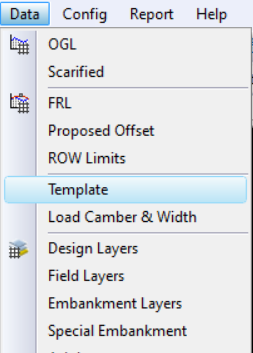

After defining the Design Layers, go to Data/ Template

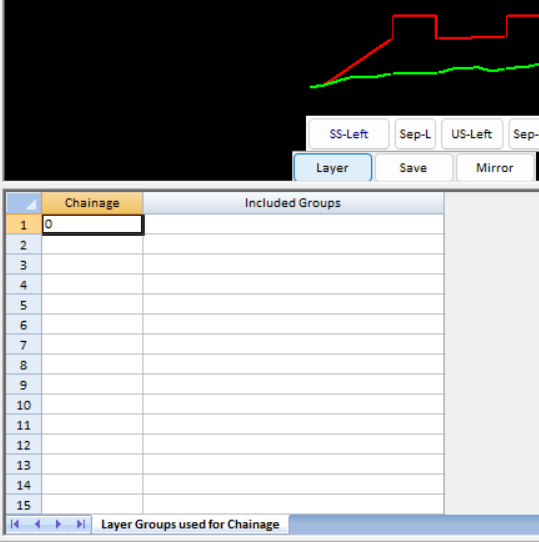

Click on Layer button, you will get layer groups to be included for chainage

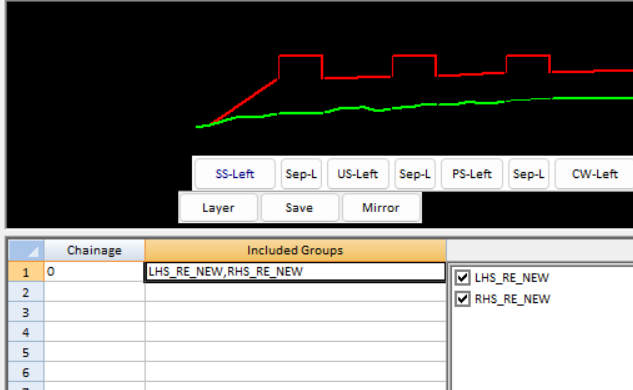

Enter chainage number and select the layer groups to be included for the chainages.
Click on Save button to save the group. Process the data and layers will get displayed.
If same layers are to be applied for a particular stretch, the end chainage of that stretch should be specified in the next cell.
