How can we add Text / Caption in Road Estimator cross section?

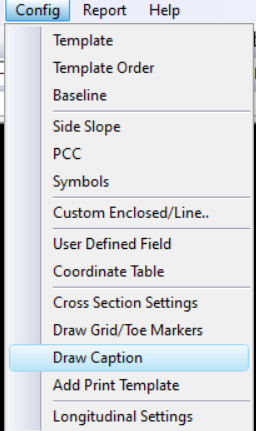

Go to Config/Draw Caption
Select base reference point for all the chainages, then select Caption Insertion Point.

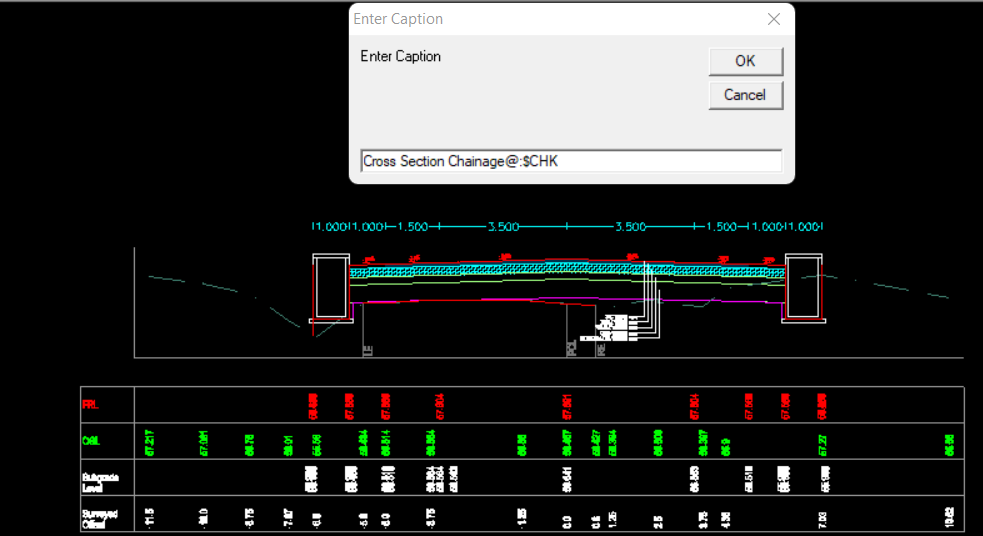

Enter the Text/Caption and click ok.
Give text height as required and select the position of text .
Caption/Text will be visible in the Cross Section.
