How to create a topographic map in AutoPlotter?

Cadastral map can be created in multiple ways. Most popular methods are:

1. Using the reference code given by the surveyor at site

2. Using the point numbers

3. Manual


All these methods are explained in detail, to view the video click here

We'll describe the first method here

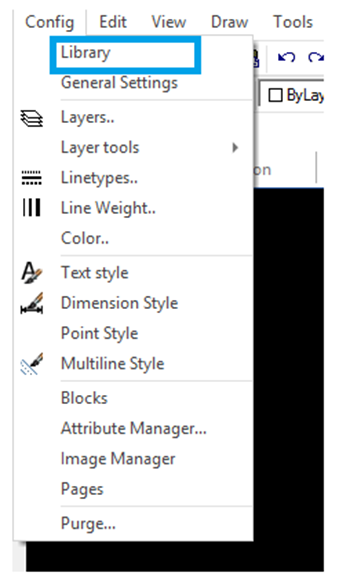

Step 1:  Import the Topographic data and then select Library under Config menu.

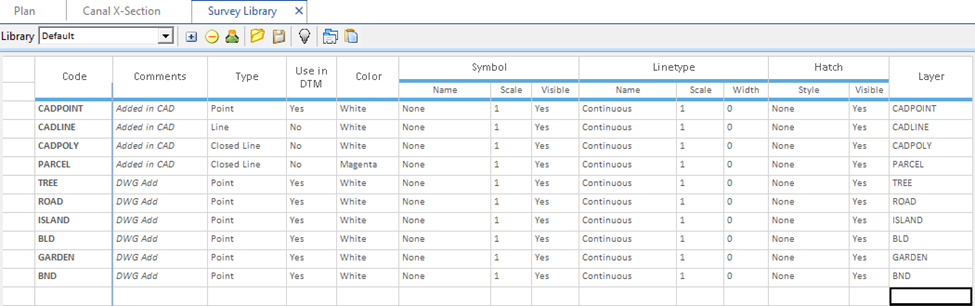

Step 2 : All the codes are automatically fetched and created as Code in the Survey Library. Identify the code and change/select its Type (points/line/closed line etc), Color, Linetype, Hatch or attach a Symbol. It possible to edit the layer name too.

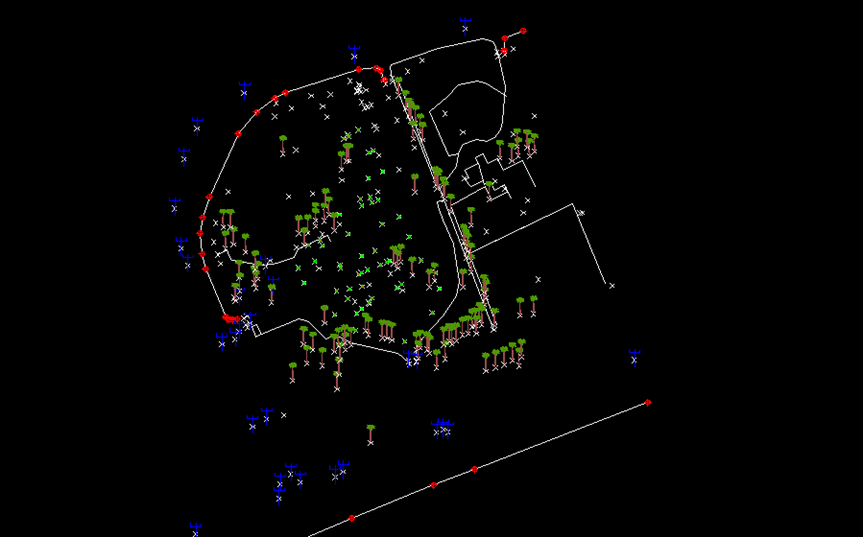

Step 3 : After configuring the Library, reprocess the data from Data menu. The cadastral map will be generated.

To know the complete procedure and other methods, please visit
