In topographic map, how to display elevation for selected code or layers in AutoPlotter?
Import
the TOPO data into AutoPlotter using any method. Goto Drawing Utility under COGO and select layer or code for which you want to show elevation. Select format (E) and click on generate to display the elevation for selected code.

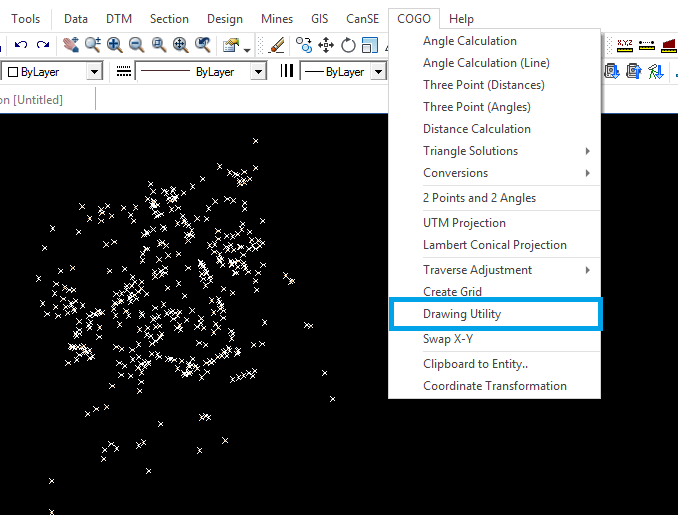

Step 1: import data and click on Drawing Utility under COGO menu
Step

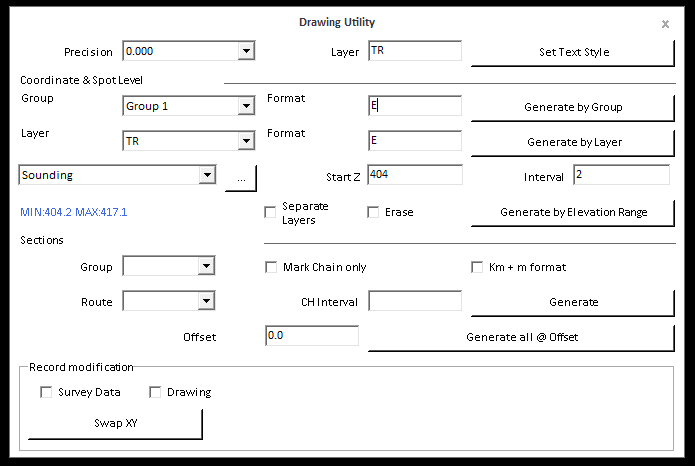

2: In Drawing Utility, select as per your requirements such as Decimal Precision, Layer Name for the elevation text.
In the Coordinates & Spot Level, select Group of the survey points for which elevation is to be displayed OR select the Layer which contains the points. In the Format, you can specify the format of the text that will be generated for the points e.g. E for elevation, E for Easting, N for Northing etc. To display elevation, give the notation as E and click on Generate by Group or Generate b Layer.

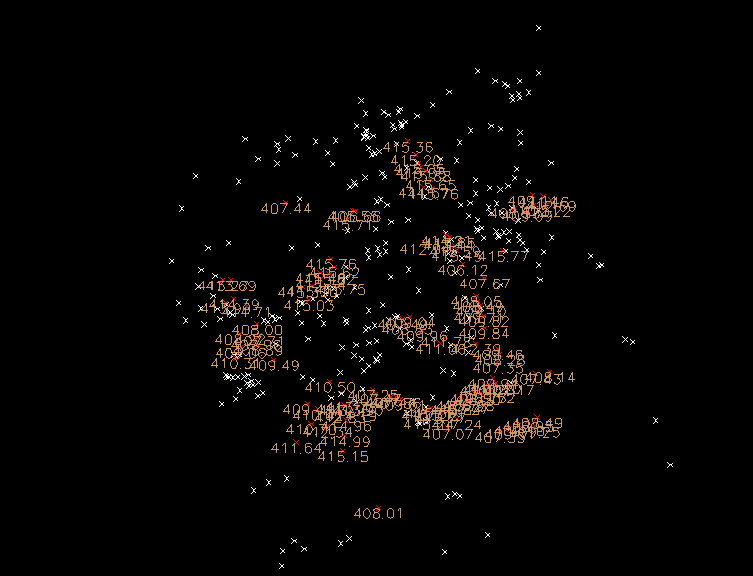

Elevation will be display for selected group / layer.
