Drain is defined but not getting displayed in Road Estimator Cross Section?
After defining the drain, save it.

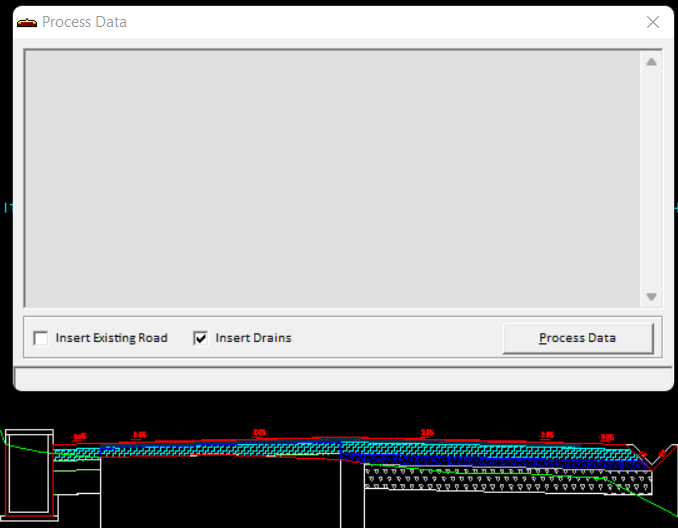

While Processing the data, check mark the 'Insert Drains' option and Process Data
The Drains will get displayed.
Related Articles
How to display area in the cross section after defining it in User Defined Field of Road Estimator?
Dynamic table is used to show the area statement with the cross section. This could be any predefined areas such as cut / fill, design layers, PCC etc. It is even possible to define areas in case those are not available in the predefined area list. ...When I'm using the add print cross section option to export the cross section from Road Estimator to .dwg format only few chainages are exporting, why?
That's because of the Road Estimator update to not process all the cross sections together to save time. If you want to print or export all cross sections follow the steps mentioned below: Go to Config menu. Select Baseline option ii. Uncheck the ...Design Layers are defined in Road Estimator, but not showing in cross section, What should I do?
After defining the Design Layers, go to Data/ Template Click on Layer button, you will get layer groups to be included for chainage Enter chainage number and select the layer groups to be included for the chainages. Click on Save button to save the ...How to generate OGL where any structure is present in the cross section using Road Estimator?
To add structure details in the cross-section, follow these steps: Step:1 Type "IBR" in the command bar and press Enter. A window will open, as shown in Figure 1. Figure 1 Step:2 Enter your structure details in the opened window and save the Bridge ...How can we add Text / Caption in Road Estimator cross section?
Go to Config/Draw Caption Select base reference point for all the chainages, then select Caption Insertion Point. Enter the Text/Caption and click ok. Give text height as required and select the position of text . Caption/Text will be visible in the ...
