How to display elevation for center offset or any other offset in plan of the route in AutoPlotter?
Yes, to display elevation for the center offset or any other offset in Section Routes, follow these steps:
Step 1: Import the section route data or generate the route data using a suitable method.

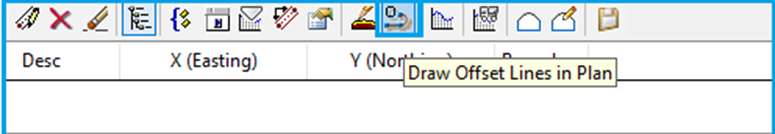

Step 2: In the Section Route panel, click on "Draw Offset Lines in Plan."

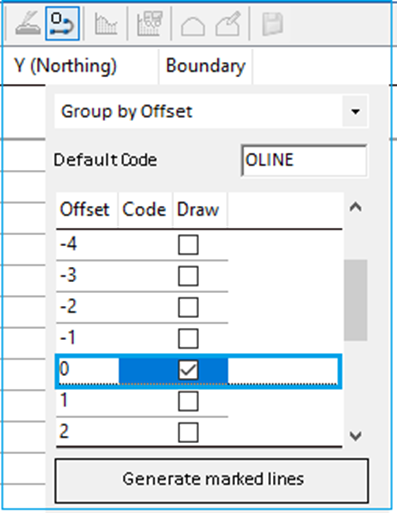

Step 3: Select center offset (0) or the desired offset to display the elevation and click on "Generate marked lines."

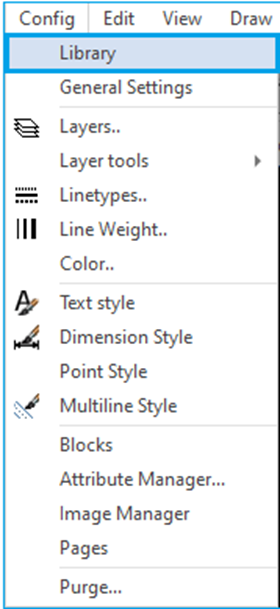

Step 4: Now, go to the Config panel and select Library. Set "Use in DTM" to "Yes" for the OLINE code.

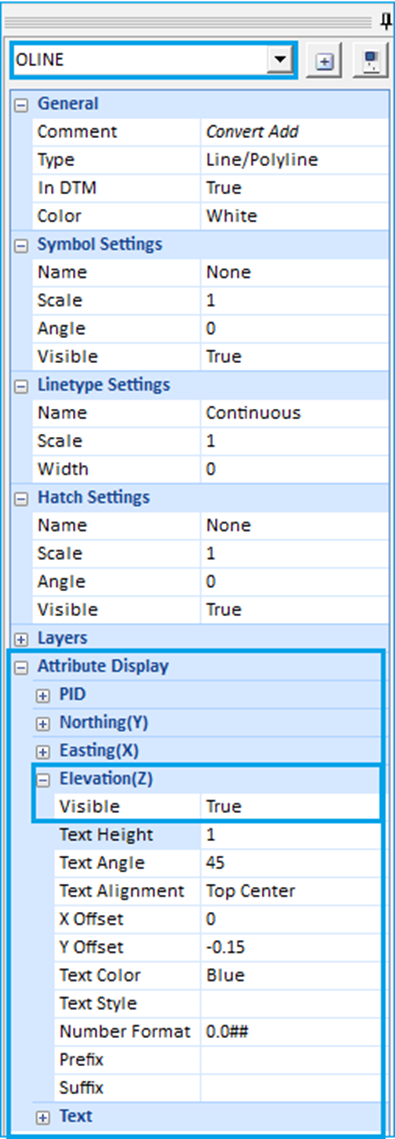

Step 5: In the Library, choose your code. Under "Attribute Display," set "Elevation (Z)" to "Visible: TRUE" to display the elevation for the selected offset.

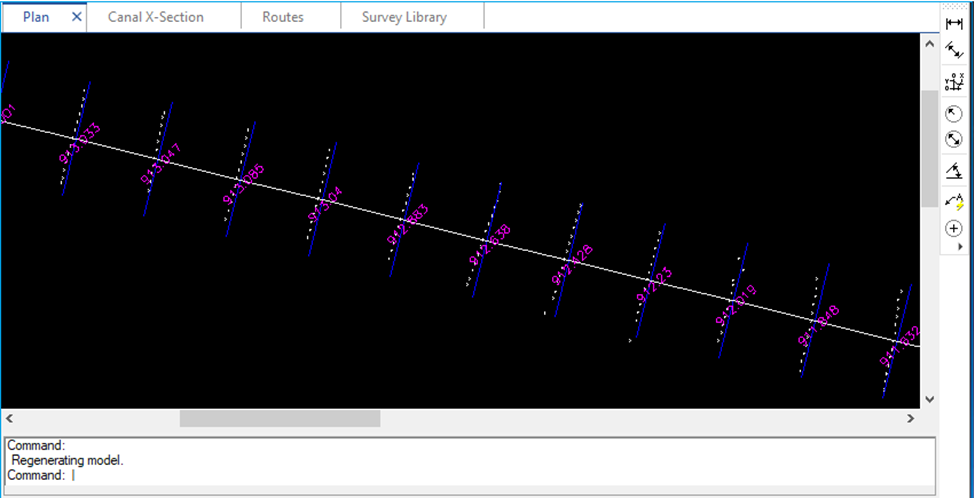

You will now see the elevation (RL) displayed at the specified offset, such as the 0 offset.
By following these steps, you can display elevation for the center offset or any other offsets.
