How to display point number or survey code in AutoPlotter?
Procedure to display point numbers or survey codes given while surveying:

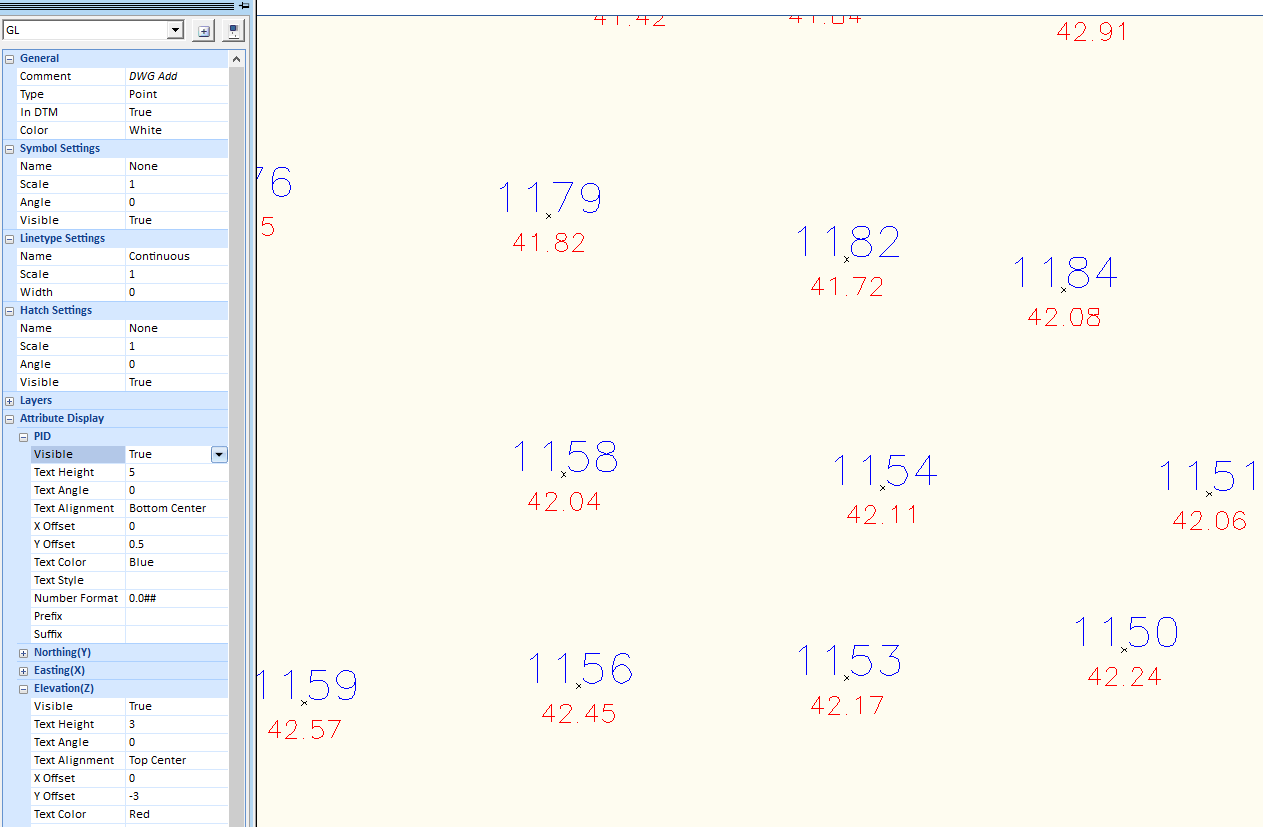

After importing the data in AutoPlotter, identify the attribute from the Library window of which the display is to be changed. e.g. to switch the point id on,
i. select the code first (GL)
ii. identify the attribute (PID)
iii. make the visibility True
Similarly, to display the elevation value in the drawing
i. select the code (GL)
ii. identify the attribute (Elevation(Z))
iii. make the visibility True
